Heartbeat Status

Navigation: Web Reports > Heartbeat Monitoring >

Heartbeat Status

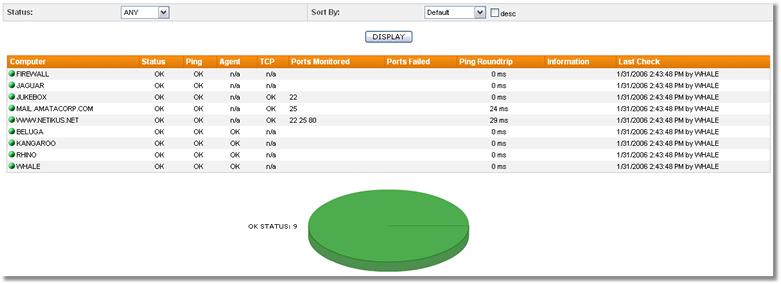

The Heartbeat Status page shows the current status of all monitored computers, including the following information:

•	Status: The overall status* of the host.

•	Ping: The current PING status, or "n/a" if not monitored

•	Agent: The current status of the EventSentry agent, or "n/a" if not monitored

•	TCP: The current TCP status, or "n/a" if not monitored

•	Ports Monitored: All TCP ports being monitored

•	Ports Failed: All TCP ports that failed

•	Ping Round trip: The current ping round trip time

•	Information: Extended information about the last error if available

•	Last Check: The last time this host was checked, and by which host it was checked

You can also filter the heartbeat status page by status, group, location (if enabled). You can also sort the output by all of the above fields.

Prerequisites:

The Global Options need to be configured to write heartbeat information to a database in order for heartbeat information to be written to the database.

clip0541

* The overall status is calculated in the following way:

Status	Description
OK	All monitored services are OK
WARNING	One or more, but not all, monitored services reported an ERROR
ERROR	All monitored services reported an ERROR
