SNMP

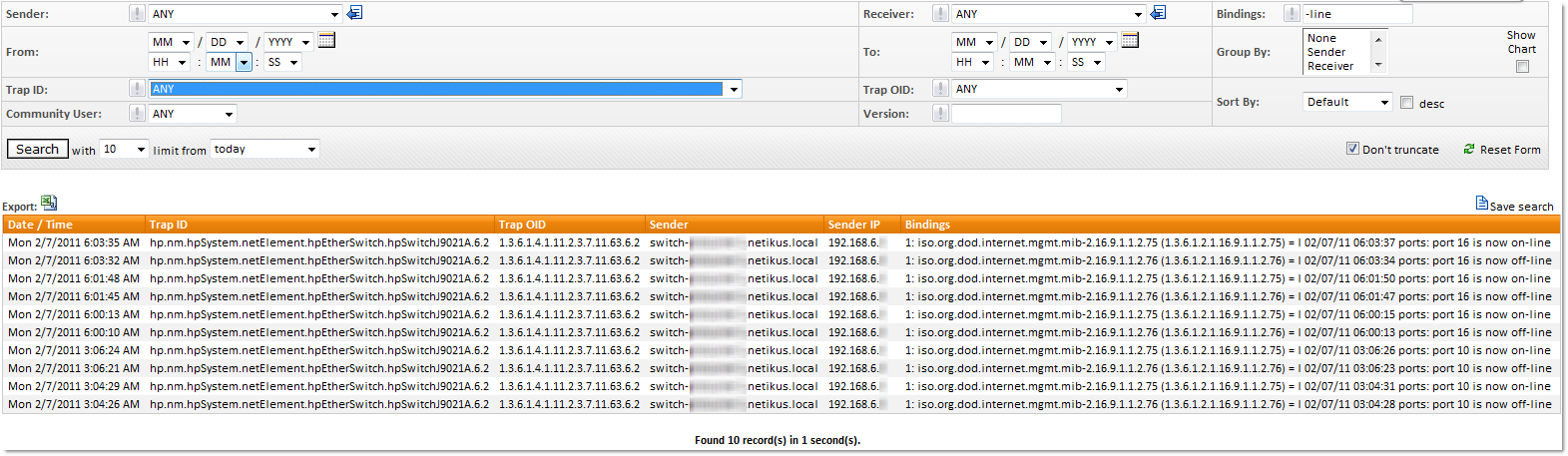

The SNMP page searches all received SNMP traps, if the Network Services are configured to log incoming SNMP traps to a database.

Sender

The network device which sent the SNMP trap.

Receiver

The computer where the EventSentry Network Services are running.

Bindings

Filter the results based on the contents of the trap bindings.

From, To

You can restrict your search to a particular time and/or date range. You can click the calendar icon to bring up a calendar. When you set a date range using the From and/or To fields, any limit setting (e.g. "last week") will be ignored.

Sort By

Use this field to sort your output. By default, output is sorted descending by Date and Time.

Trap ID

The SNMP Trap ID, as resolved by installed MIBs.

Trap OID

The numerical SNMP Trap OID.

Community / User

The community (v1, v2c) or username (v3) of the SNMP trap.

Version

The version of SNMP Trap, which can be v1, v2 or v3.
