Temperature / Humidity

Temperature and humidity monitoring is configured by clicking on the Environment container located beneath the root computer container.

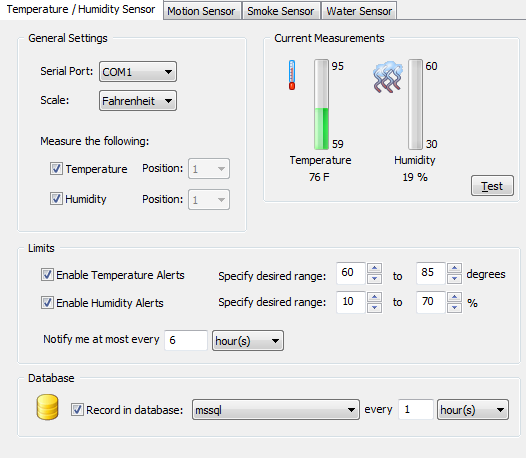

General Settings

Configure the serial port where the sensor is attached to and select the desired temperature scale. Depending on the type of sensor you purchased you can either monitor the temperature, humidity or both temperature and humidity.

If you are attaching a temperature or a humidity sensor, then you will need to select the respective position on the serial adapter to which the sensor is attached to. The position is indicated on the actual adapter and is always 1 if the adapter only supports one sensor.

If you are attaching a temperature and humidity sensor, then both position fields are grayed out since this sensor always uses position 1 & 2 internally.

Current Measurements

If a sensor is connected to the local machine, then these two bars will show you the last temperature and/or humidity reading as it was reported by the agent.

Limits

Temperature and Humidity alerts write an error event to the event log whenever the measured value falls outside your configured range, and will log an information event to event log when the measured value is back in the configured range, thus clearing the alert.

Enable Temperature Alerts: Check this box to be alerted when the temperature falls outside a configure range. You can configure a temperature alert by setting a desire temperature range, for example 60 to 78 degrees Fahrenheit. You will be alerted as soon as the measured temperature falls outside the desired range.

If you do not care about a minimum temperature then you can specify 0 for the lower end of the range.

Enable Humidity Alerts: Check this box to be alerted when the humidity falls outside a configure range. You can configure a humidity alert by setting a desire humidity range, for example 10 to 60 percent. You will be alerted as soon as the measured humidity falls outside the desired range.

If you do not care about a minimum humidity then you can specify 0 for the lower end of the range.

Notify me at most every XX: Configure how often an error should be written to the event log when the temperature and/or humidity fall outside the configured range.

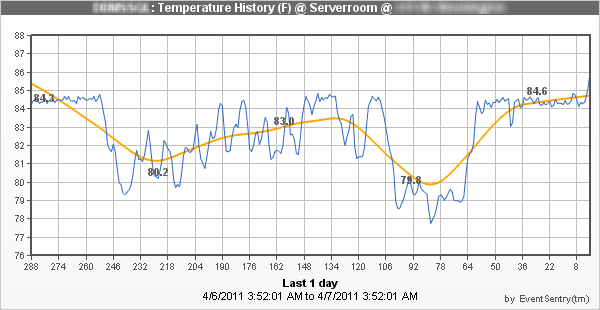

Embedded Charts: When temperature alert events are emailed by EventSentry, they will automatically include a PNG chart from the environment data collected during the last 24 hours. The image will include the host name, the type of environment data that is charted (e.g. temperature in degrees Fahrenheit) as well as the description, if configured. The chart includes an automatically calculated trend line in orange.

Database

In addition to being notified when thresholds are exceeded, you can also log the current temperature and/or humidity to a database to view trends and the history.

Select the ODBC action where to write the history to and how often the current data should be written to the database. The minimum time interval is 5 minutes.

Location

If you are using multiple temperature/humidity sensors in your organization then you can specify the location here. The location is included in the alerts that are logged to the event log, it is not shown in the web reports.
