Navigation:  Monitoring with EventSentry > Environment Monitoring >

Motion Monitoring

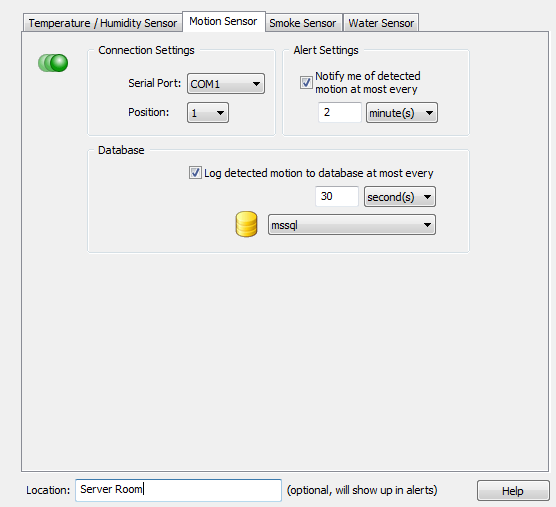

Motion monitoring is configured by clicking on the Environment container located beneath the root computer container.

Connection Settings

Select the serial port to which the serial adapter is attached to, and indicate at which position (1-4) the sensor is attached to. The position is indicated on the actual adapter and is always 1 if the adapter only supports one sensor.

Alert Settings

Select how often you want alerts to be generated when continuous motion is being detected.

Database

Select the ODBC action to which motion information should be written to, and specify how often data should be added to the database when continuous motion is being detected.

Location

If you are using multiple motion sensors in your organization then you can specify the location here. The location is included in the alerts that are logged to the event log, it is not shown in the web reports.
