Network Overview

The Network Overview page will provide a general overview of the recent things occurring on you machines.

Summary	Includes monitoring duration
Heartbeat Status	Lists all machines with a negative Heartbeat Status
Heartbeat History	Most Recent Heartbeat Changes
Disk Alerts	Checks for any drive under the Lower Limit (configured in the Profile Editor)
Performance Alerts	Checks for any counter exceeding the set threshold (configured in the Management console)

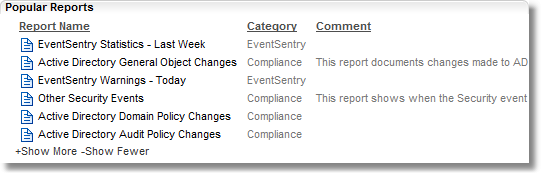

Popular Reports	Contains commonly run reports
Overdue Reports	Displays any report that has fallen outside the configured interval
Recently Installed Applications	Recent software additions
Most Active Machines	Shows the number of events collected over the last 3 hours and how it compares to other machines

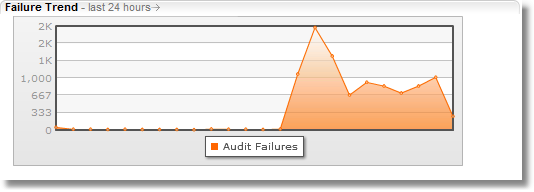

Failure Trend	History of Audit Failures over the last 24-hours

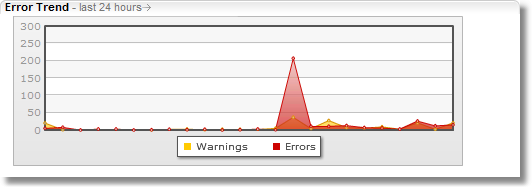

Error Trend	History of Errors and Warnings over the last 24-hours
Most Recent Events	Last events to occur on your systems
Recent Event Comments	Includes recent comments

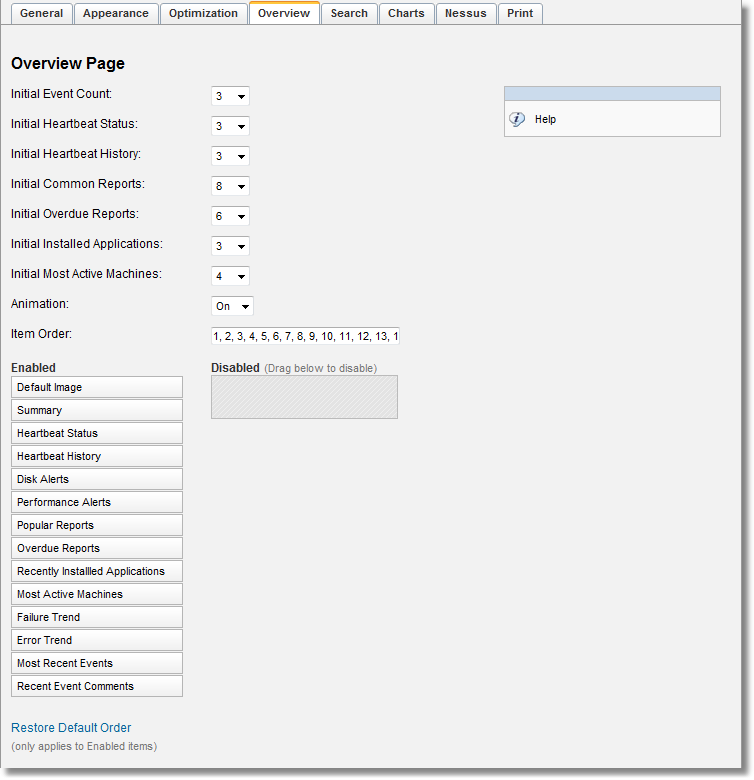

Each element has a default number assigned to it in the Profile Editor that declares how many initial values should be loaded. The values for the Network Overview page are found under the Overview tab.

This option will toggle whether the Failure Trend and Error Trend charts contain animation when loading or not.

By clicking on the header of each element on the Network Overview, it is possible drag and reorder the elements on the page. The order will be stored in the Item Order option in the Profile Editor. To reset the order back to the default you will find the Restore default order option at the bottom of the page.

It is also possible to change the order of the items from the Profile Editor. Each item has a numerical value that can be changed in the Item Order field. Below this field there is a visual representation of the items and the given order which can also be rearranged.

On elements where there is the option to Show More / Show Fewer you and dynamically load more values in that section on-the-fly. By clicking either option the updated values will be written and stored to the values in your configuration.
