Navigation:  Web Reports > Environment Monitoring >

Motion

The motion search page shows you when motion was detected by an attached motion sensor and provides the following information:

Computer

Select a computer who is monitoring motion, or select ANY to match any computer.

Location

Select a location to restrict the search to only show results from sensors in the selected location.

Motion Output

The screenshots below show sample outputs of a motion search.

Motion Summary

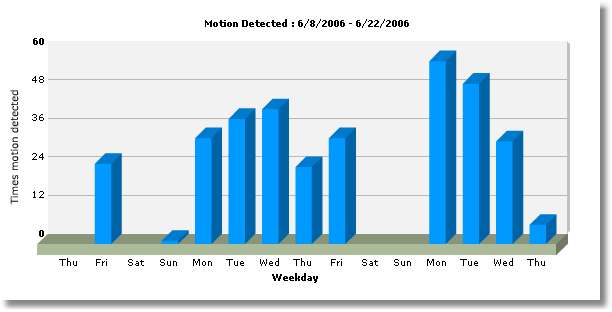

The 2 week summary (figure 1) shows how often motion was detected on each day of the week. If you move the mouse over the bars then you will see the number of times motion was detected on this particular day.

Detailed Motion Search

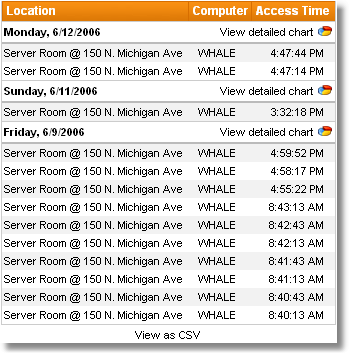

The detailed results (figure 2) show you exactly when motion was detected by the motion sensor. The output is grouped by day and shows the location, computer and access time. You can click on "View detailed chart" to see an hourly chart.

Motion data can also be displayed in CSV form.

Hourly Chart

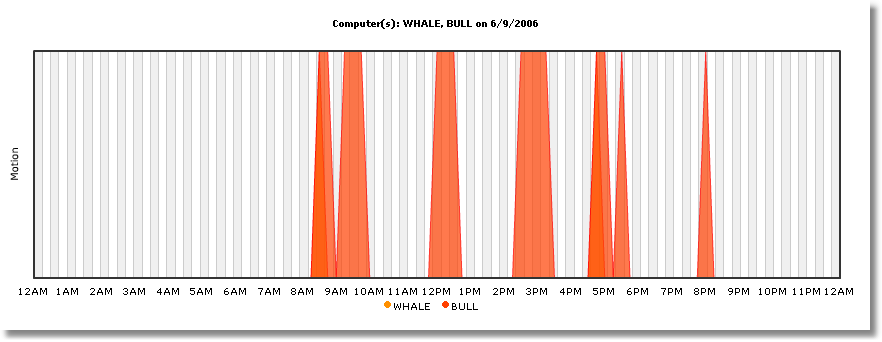

The hourly chart (figure 3) shows during which hours motion was detected on one or more computers.

Figure 3: Hourly Motion Chart
