Encrypting traffic between the database and the agents is generally not necessary when utilizing the collector service, introduced in EventSentry v3.2.



First, install OpenSSL from http://slproweb.com/products/Win32OpenSSL.html in order to create the required certificates.



Open the command prompt as an administrator (Run as administrator) and navigate to the OpenSSL directory (c:\OpenSSL-Win32 by default):



1.  Set the environment variable for OPENSSL_CONF:



         set OPENSSL_CONF=c:\OpenSSL-Win32\bin\openssl.cfg



2.  Generate a CA certificate:



         openssl genrsa 2048 > ca-key.pem

         openssl req -sha1 -new -x509 -nodes -days 3650 -key ca-key.pem -out ca-cert.pem



3.  Generate a server certificate:



         openssl req -sha1 -newkey rsa:2048 -days 3650 -nodes -keyout server-key.pem -out server-req.pem

         openssl x509 -sha1 -req -in server-req.pem -days 3650 -CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 -out server-cert.pem

         openssl rsa -in server-key.pem -out server-key.pem



4.  Generate a client certificate:



         openssl req -sha1 -newkey rsa:2048 -days 3650 -nodes -keyout client-key.pem -out client-req.pem

         openssl x509 -sha1 -req -in client-req.pem -days 3650 -CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 -out client-cert.pem

         openssl rsa -in server-key.pem -out server-key.pem



5.  Convert and move the generated files to the postgreSQL data directory:



         openssl x509 -outform pem -in ca-cert.pem -out root.crt

         openssl rsa -in server-key.pem -out server.key

         openssl x509 -outform pem -in server-cert.pem -out server.crt

         copy root.crt "C:\Program Files (x86)\EventSentry\data96\root.crt"

         copy server.key "C:\Program Files (x86)\EventSentry\data96\server.key"

         copy server.crt "C:\Program Files (x86)\EventSentry\data96\server.crt"



warning_32

The built-in PostgreSQL database on EventSentry v3.2 and earlier is just named "data", e.g. C:\Program Files (x86)\EventSentry\data.



6.  Edit Postgresql.conf



 Location: C:\Program Files (x86)\EventSentry\data96\postgresql.conf



7.  Set "ssl = on" and uncomment the line.



 Location: Line 80



8.  Save postgresql.conf



9.  Restart EventSentry Database service



10. Open EventSentry Management Console, expand "Actions" and click "Primary Database"



11. Click "Create ..." next to your connection string.

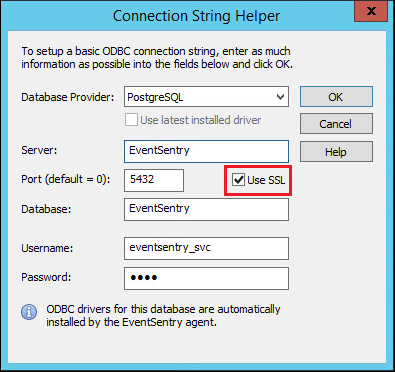

12. Select "Use SSL" and verify the rest of the data before clicking "Ok"



 SSLCheck





13. Verify your connection string contains "sslmode=require"



 SSLrequire



14. Click "Test" and verify the test entry was successfully written to the database.



15. Save the configuration in EventSentry Management Console
