Encrypting Network Traffic with MSSQL

Most ODBC drivers, including Microsoft SQL Server, transmit network traffic in clear text which can be a problem in security sensitive environments. Microsoft SQL Server supports protocol encryption which encrypts all traffic between the client (=EventSentry agent) and the Microsoft SQL server.

This chapter will guide you through the process of setting up Certificate Services and requesting a certificate so that SQL server can use protocol encryption. This chapter is based on using Windows Server 2003 for the OS and Microsoft SQL Server 2000/Microsoft SQL Server 2005 for the database.

You will only need to follow these steps if you do not have certificate services running in your domain. If you already have a certificate server in your domain then you can skip step 1.

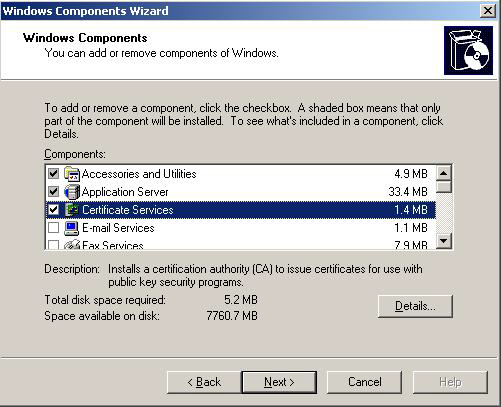

Navigate to "Start -> Settings -> Control Panel -> Add/Remove Programs" and click "Add/Remove Windows Components" which will bring up a screen similar to the one shown below:

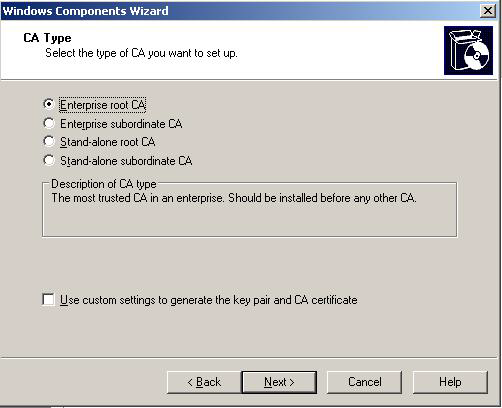

Check "Certificate Services" and click next. Click "Yes" on the confirmation dialog if the imposed restrictions are OK. On the next screen select the appropriate certificate authority type for your network. Please refer to the Windows Server documentation for more information. In our example we will be installing an "Enterprise Root CA" since it is the first CA server:

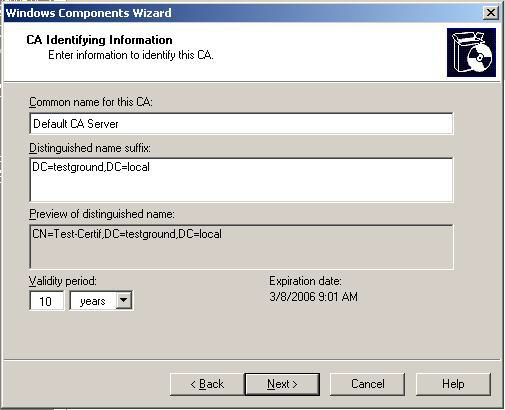

Please note that the following screenshots might look differently depending on the type of CA you select here (the screenshots shown are based on the "Enterprise root CA" selection). On the next screen enter the "CA Identifying Information". Make sure that you enter a good common CA name and a specify a validity period that is long enough:

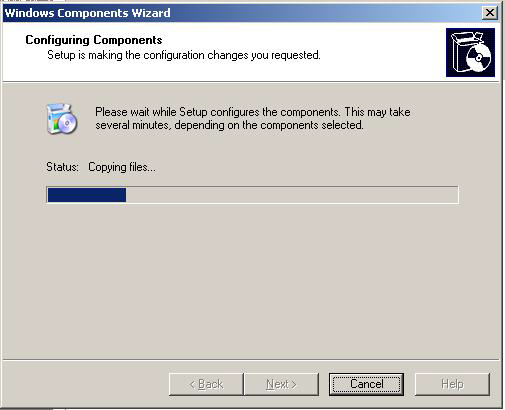

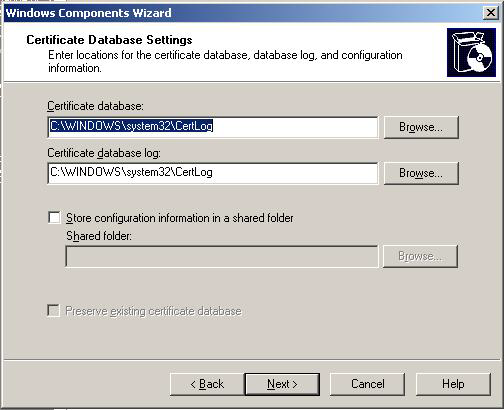

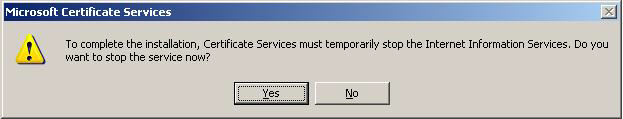

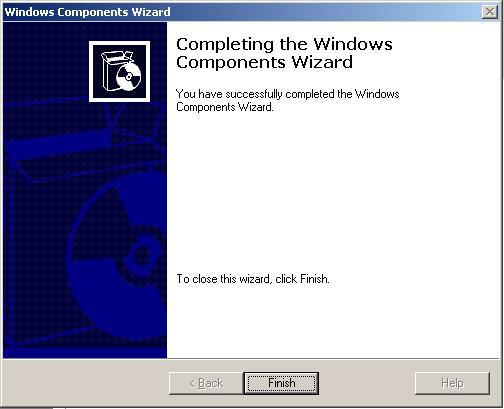

After clicking Next confirm the following dialogs and click "Finish" to complete the setup of the CA.

In order to manage/create certificates you need to configure an MMC for the certificate services. To open the Certificates snap-in, follow these steps:

•	To open the MMC console, click Start, and then click Run. In the Run dialog box type: mmc

•	You are prompted to open the snap-in for the current user account, the service account, or for the computer account. Select the Computer Account.

•	Click OK in the Add/Remove Snap-in dialog box. Your installed certificates are located in the Certificates folder in the Personal container.

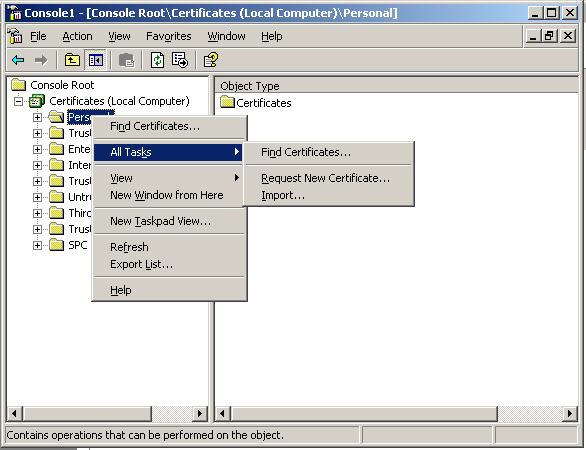

In the MMC, click to select the Personal folder in the left-hand pane. Right-click in the right-hand pane, point to All Tasks, and then click Request New Certificate....which will bring up the dialogs shown below:

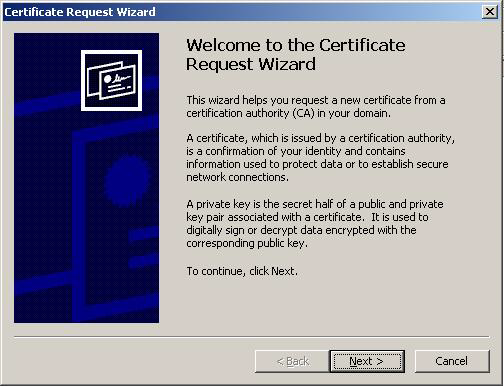

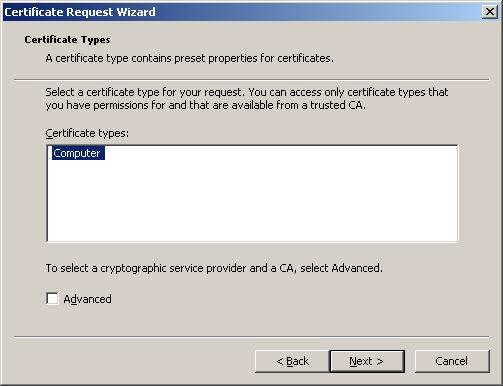

The Certificate Request Wizard dialog box opens. Click Next. Select Computer as the Certificate type.

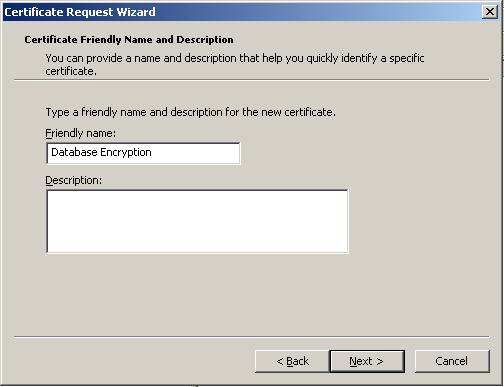

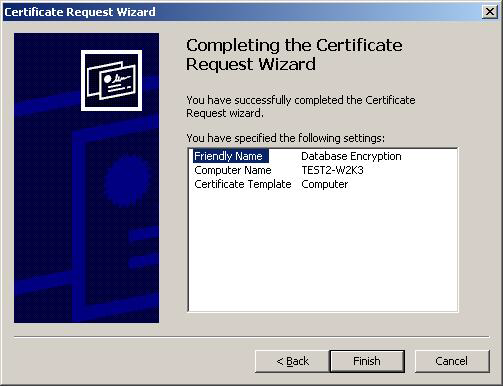

In the Friendly Name text box you can type a friendly name for the certificate or leave the text box blank, and then complete the wizard. After the wizard finishes, you will see the certificate in the folder with the fully qualified computer domain name.

Once the certificate is installed you can configure the SQL Server to "Force protocol encryption".

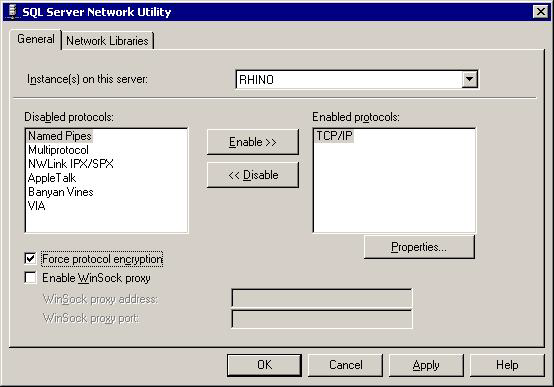

Navigate to Start -> Programs -> Microsoft SQL Server and open the "Server Network Utility". Activate the "Force protocol encryption" checkbox and click OK. From now on clients will encrypt all traffic when they communicate with the database server.

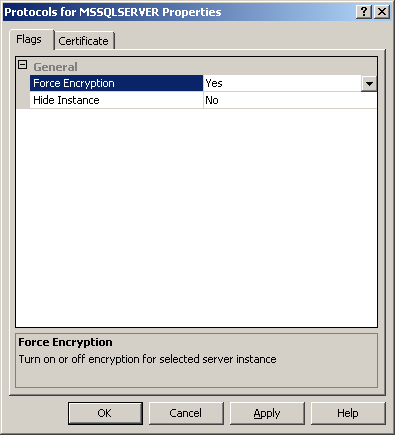

Navigate to "Start -> Programs -> Microsoft SQL Server 2005-> Configuration Tools" and open the "SQL Server Configuration Manager". Expand "SQL Server 2005 Network Configuration". Right click on "Protocols for MSSQLSERVER" and choose Properties. Set "Force Encryption" to "Yes" then click on the Certificate tab where you have to select the certificate you created above.

All clients communicating with the SQL Server will need an up-to-date SQL Server ODBC driver installed in order to support encryption. If a machine is unable to communicate with the database server after you enabled encryption, installing the latest MDAC (Microsoft Data Access Components) from MDAC Downloads will usually resolve the problem.
