Computer Overview

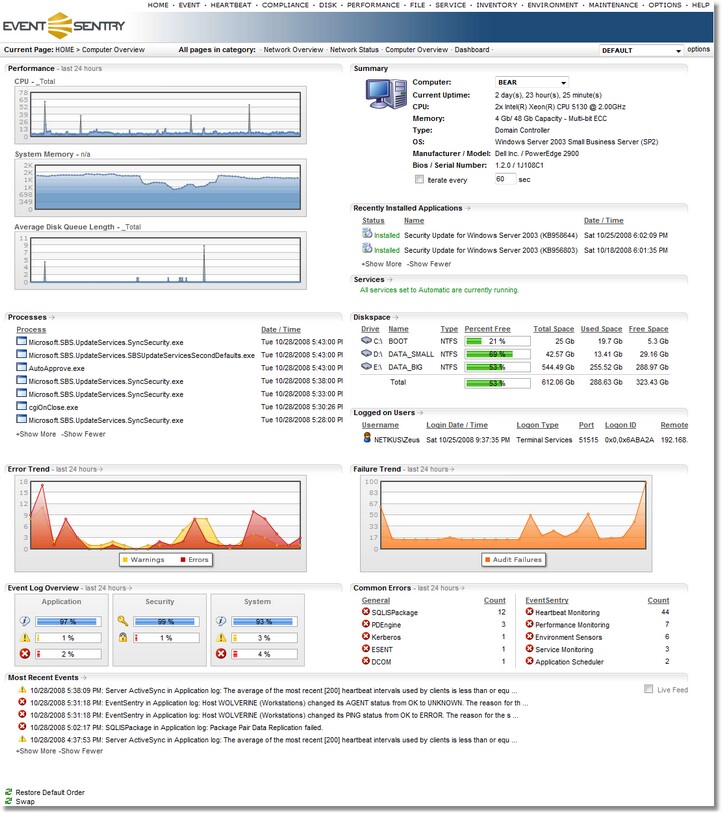

The Computer Overview page provides a birds-eye-view to recent things happening on a given machine. To change the selected computer simply choose the computer in the list.

Summary	Provides System information about the selected computer

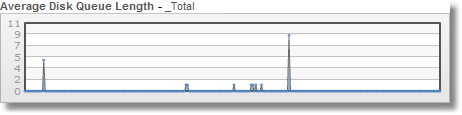

Performance	Graph of Performance values logged over the last 24 hours for given counters
Services	List of all stopped services that have been set to Automatic
Processes	Recently run processes
Logged on users	Current users that are logged on to the selected computer
Diskspace	Recent disk space usage
Recently Installed Applications	Lists recent applications installed
Error Trend	Errors and Warnings over the last 24-hours
Failure Trend	Audit Failures over the last 24-hours
Event Log Overview	Which type of events are occurring
Common Errors	Show most recent error sources
Most Recent Events	Includes recent events

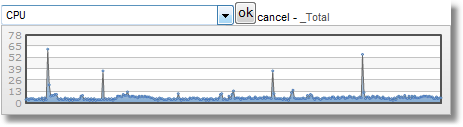

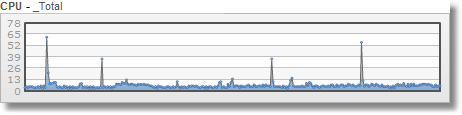

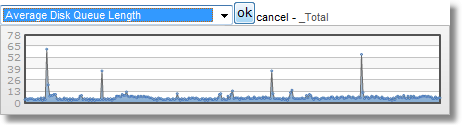

Not only can you view EventSentry's out-of-the-box counters on this page, but you can also change the charts to load any custom counters you are monitoring. Simply click the name of the counter or instance on the page and a select box with all your counters will be dynamically loaded. Select the counter or instance you are interested in and hit okay and this will not only reload the chart, but it will also update your configuration in the Profile Editor.

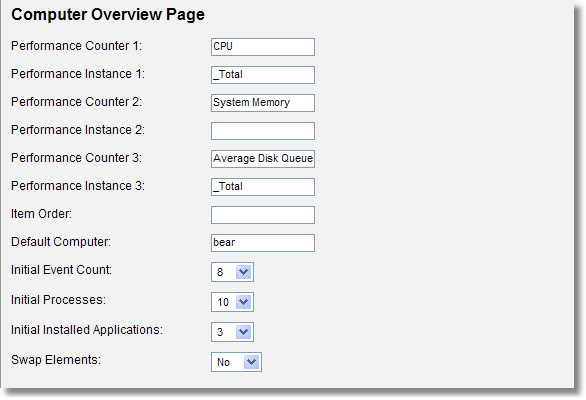

Each element has a default number assigned to it in the Profile Editor that declares how many initial values should be loaded. The values for the Computer Overview page are found under the Overview tab. Here you can set the default performance counters that are loaded as well as which computer should be loaded first.

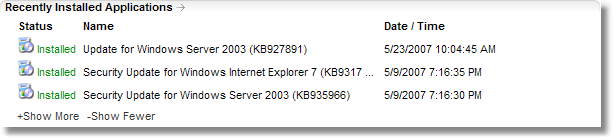

On elements where there is the option to Show More / Show Fewer you and dynamically load more values in that section on-the-fly. By clicking either option the updated values will be written and stored to the values in your configuration.

By clicking on the header of each element you could drag and reorder the elements on the page. The order will be stored in the Item Order option in the Profile Editor.

To reset the order back to the default you will find the Restore default order option at the bottom of the page. The option to Swap will flip the elements on the page. This will let you choose which side the Performance counters load on.
