Defining Monitored Files

Once you have created a file definition for your delimited files, or, if you are monitoring non-delimited files, you can configure the actual files that are to be monitored. EventSentry supports variables and wildcards for log files that include dynamic strings such as date, time and sequence numbers.

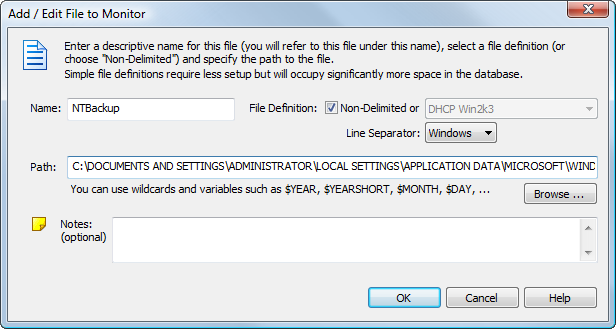

When adding a new file, you will be required to point to the path of the log file (variables and wildcards are supported), enter a unique name for the log file and specify whether the file is delimited (including a file type) or non-delimited.

To create a new or edit an existing file definition, right-click the Log File Packages container and select Files and Files Types. The Files area will show you all currently configured files and allow you to specify new files.

Specify a descriptive name for the log file. For example, enter Firewall Log File if you are monitoring the log file of your firewall.

If you are monitoring a non-delimited file, check the Non-Delimited checkbox. Otherwise, select the file definition from the pull-down menu. If a suitable definition is not in the list, then you will have to create a new file definition.

Specify the full path to the log file. Since log files usually include dynamic strings such as the current date, file etc., you can include variables and/or wildcards in the file name. The following variables and wildcards are supported:

Character/Name	Type	Description
*	Wildcard	matches zero or more characters
?	Wildcard	matches single character
$YEAR	Variable	4-digit year
$YEARSHORT	Variable	2-digit year
$MONTH	Variable	2-digit month
$DAY	Variable	2-digit day
$HOUR	Variable	2-digit hour (24 hour format)
$MINUTE	Variable	2-digit minute

Since you can use both wildcards and variables, you can often specify the file name of your log files in two different ways - either with by using wildcards or by using variables. See the table below for examples on how to map file names:

File Names	ntbackup01.log	ex070501.log	ex070501.log	20070110232333 Mar 15, 2007 12.33 PM.txt
	ntbackup02.log	ex070502.log	ex070502.log	20070340242343 Mar 16, 2007 12.35 PM.txt
	ntbackup03.log	ex070503.log	ex070503.log	20070139619433 Mar 15, 2007 12.37 PM.txt
	ntbackup04.log	ex070504.log	ex070504.log	20070165420734 Mar 15, 2007 12.40 PM.txt
EventSentry	ntbackup*.log	ex$YEARSHORT$MONTH$DAY.log	ex*.log	$YEAR$DAY, $YEAR.txt

As you can see from the 3rd and 4th column, you can sometimes specify the log file name in two different ways.

You can use notes to specify what application generates the log file or other descriptions.
