Customizing Heartbeat Options

Top  Previous  Next

Once the global heartbeat options are set you can customize the settings per computer if necessary. For example, while you might want to ping all computers, only one computer might be running the SMTP service on TCP port 25.



To customize the computer settings, right-click the computers container and select Customize Computers. You will see a dialog on the right similar to the one shown below:



clip0174



The screenshot shows three computers, where two are already configured individually.



The letters shown in the Options column are abbreviations for Ping [P], Agent [A] and TCP [T]. If the letter for the particular feature is shown in the Options column, then this means that the respective service will be monitored. The ports column shows all TCP ports that are being monitored.

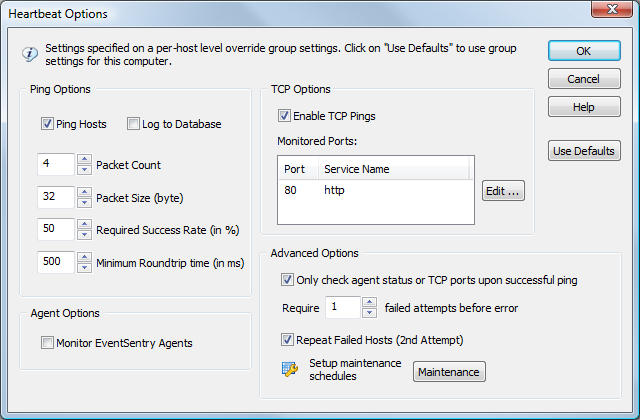

To customize the settings for a computer, simply double-click the computer in the list or select Edit Settings ... from the context menu. This will yield a dialog similar to the one shown below:



clip0175



When you press the OK button, the computer will be monitored using the settings specified in the dialog. It is currently not possible to only override a particular option, for example only override the TCP option.



Alert or Warning 1 24 n g

Even after you save the configuration, you will need to wait for the next heartbeat monitoring interval before you will see your changes reflected on the heartbeat status page.



In order for a computer to inherit the default group settings again, click the Use Defaults button. This will dismiss the dialog and the computer will inherit the group settings again.
